Block Ice Machines: The Superior Choice for Industrial and Commercial Cooling

Reliable cooling is a cornerstone of modern industry. Many sectors require a consistent and long-lasting ice supply. Block ice stands out as the most durable solution available. This ice is dense, heavy, and extremely slow to melt. It serves as a vital resource for global logistics and food preservation. Many engineers prefer it for large-scale construction projects as well.

At Focusun, we specialize in advanced refrigeration engineering. We have over 10 years of experience in this competitive field. Our team has supported more than 11,000 clients across 56 countries. We do not just manufacture hardware. We build the infrastructure for your business success. This article explores why block ice machines are the ideal investment for your operations.

What Exactly is a Block Ice Machine?

Technical Definition and Major Components

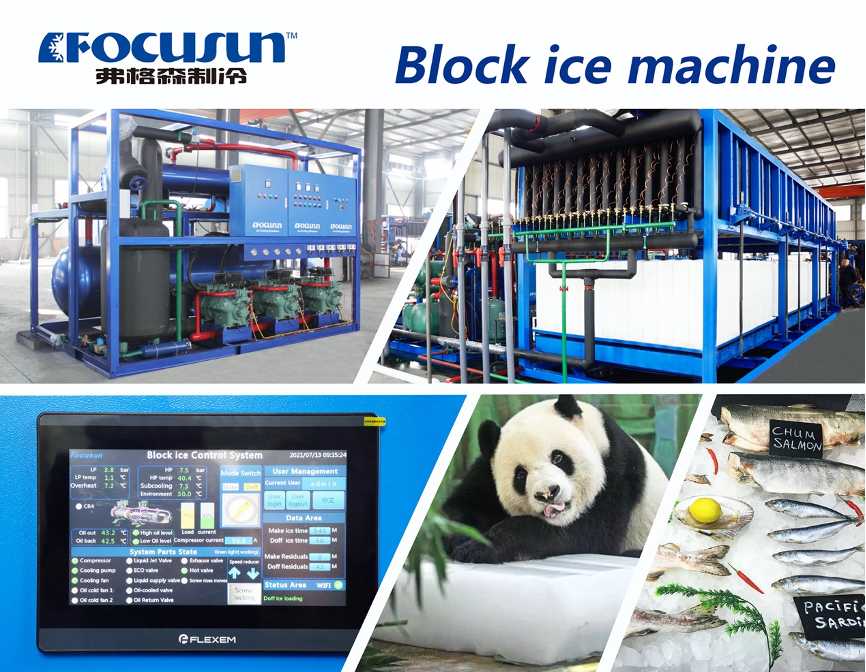

A block ice machine is a heavy-duty system. It freezes water into large, solid rectangular blocks. These blocks typically weigh between 5kg and 100kg. The machine uses a continuous refrigeration cycle to reach sub-zero temperatures. Block ice has a very small surface area compared to its mass. This specific physical trait makes it last longer than any other ice type.

The system relies on several essential components:

• The Evaporator Unit: This is the location where the heat exchange occurs.
• The Refrigeration Compressor: We use premium brands like Bitzer or Copeland. These compressors act as the heart of the entire system.
• Ice Molds: These containers hold the fresh water. We use 304 stainless steel or aluminum alloys to ensure a long life.
• The Harvesting System: Large plants use an automated overhead crane. This tool lifts the heavy ice blocks safely.

The Physics of Heat Exchange

Every ice machine follows the laws of thermodynamics. Heat always moves from a warm place to a cold place. The machine uses a refrigerant to pull heat away from the water.

There are two primary methods for making block ice:

1. The Brine System (Indirect Cooling): The machine uses a large tank filled with salt water. This salt water is called brine. The refrigeration coils cool the brine to -12°C. The brine then surrounds the ice cans. Salt prevents the brine from freezing into a solid. The water inside the cans gradually turns into ice.
2. The Direct Cooling System: This is a modern and faster method. The refrigerant flows directly through the walls of the aluminum molds. This removes the need for a brine tank. It saves space and improves overall hygiene.

Professional Expertise: Engineering for Performance

Our engineers focus on small details to achieve high performance. These technical choices separate our machines from standard models.

1. Brine Chemistry and Management

In indirect systems, brine concentration is critical. If the salinity is too low, the brine will freeze on the coils. This creates an ice layer that blocks heat transfer. If the salinity is too high, the fluid becomes too thick. This thickness puts a heavy load on the pumps. We provide clients with precise tools to monitor these levels. We ensure your system runs smoothly 24 hours a day.

2. Advanced Hot Gas Defrosting

Harvesting large ice blocks can be a difficult task. Blocks often stick to the cold walls of the mold. Focusun uses Hot Gas Defrosting in our direct systems. We briefly reverse the flow of the hot refrigerant. This vapor warms the mold walls for a few minutes. The ice block then slides out easily. This technology saves energy and protects the machine from physical stress.

3. Material Science and Durability

Industrial environments are often very aggressive. Humidity and salt can cause rapid corrosion. We use high-grade 304 stainless steel for all critical parts. We also apply anti-corrosion coatings to all external pipes. These engineering standards extend the machine’s life to 20 years.

Real-World Experience: Overcoming Harsh Conditions

A machine must perform well in the real world. Our experience comes from some of the hottest climates on the planet.

Case Study: Seafood Preservation in High Heat

We recently installed a 30-ton system for a fishing hub in South Asia. The local temperature often stayed above 35°C.

• The Challenge: The client needed to transport tuna for 48 hours. They had no refrigerated trucks.
• The Solution: We built a containerized block ice plant. We used a water-cooled condenser with a large cooling tower.
• The Result: The machine produced “hard” ice blocks at -10°C. These blocks lasted for two full days in the sun. The client saved their inventory and increased their revenue.

Case Study: Dam Construction and Concrete Cooling

Concrete generates a lot of heat when it sets. This heat can cause the structure to crack.

• Our Role: We supplied block ice machines to a dam project in Africa.
• The Process: The workers crushed the ice blocks into small pieces. They added these pieces directly to the concrete mixer.
• The Outcome: The ice absorbed the chemical heat instantly. This allowed the engineers to pour concrete during the day. The dam remained strong and free of cracks.

Why Choose Block Ice? A Practical Comparison

Business owners must evaluate their cooling needs carefully. This table compares the three most common ice types.

Trust and Value: Maximizing Your ROI

A Focusun machine is a long-term financial asset. We provide clear data on costs and returns.

Return on Investment (ROI)

Efficiency is the key to profit. Our modern compressors use 15% less electricity than older designs. This reduction saves thousands of dollars in power bills every year. Furthermore, our automated systems reduce the need for manual labor. One person can operate a 50-ton plant with ease.

Maintenance for Long Life

We design our machines to last for two decades. You can achieve this with simple maintenance:

• Daily: Monitor the oil levels and system pressure.
• Monthly: Clean the water filters and check electrical wires.
• Yearly: Replace the compressor oil and check the refrigerant levels.

Authority: A Global Leader in Refrigeration

Focusun is a trusted name in the international market.

• Global Certifications: We hold CE, FDA, and HACCP certifications. These prove our commitment to safety and quality.
• Local Adaptation: We have projects in 56 countries. We understand how to build machines for different power grids and climates.

FAQ: Frequently Asked Questions

Q: Can I make clear ice for ice sculptures?

A: Yes. Our machines use water circulation to remove air bubbles. This creates crystal-clear ice blocks.

Q: How much space does a block ice plant need?

A: We offer containerized solutions. A 20-ton plant fits inside one 40-foot shipping container. This makes installation very fast.

Q: Is the brine system safe for fish?

A: Yes. The ice cans are completely sealed. No salt water touches the ice. For even higher hygiene, you can choose our direct cooling models.

Secure Your Future with Focusun Cooling

Reliability is the most important factor in industrial cooling. A machine failure can cause expensive delays. Block ice machines provide a stable and powerful cold source. They are the best choice for long-term projects and harsh environments.

Focusun is ready to partner with your business. We offer the engineering expertise you need to grow. We help you choose the right technology for your specific goals.

Contact a Focusun engineer today. Request a custom proposal and a detailed ROI analysis for your next project.
