Flake Ice Machines: The Superior Cooling Solution for Modern Industrial Applications

Ice plays a vital role in industrial cooling today. Precision and reliability are not just goals for engineers. They are absolute necessities for success. Engineers must maintain the integrity of massive concrete pours. They also need to cool chemical reactions rapidly. The choice of ice dictates the outcome of the entire project. Flake ice has unique physical properties. It is now the gold standard for these demanding applications.

Focusun is a leader in this industry. We have over 10 years of professional experience. Our team serves clients in 56 countries globally. We have supported more than 11,000 customers with reliable cooling. Industrial clients do not just buy a machine. They need a partner for efficiency and durability.

What is an Industrial Flake Ice Machine?

Technical Definition and Core Components

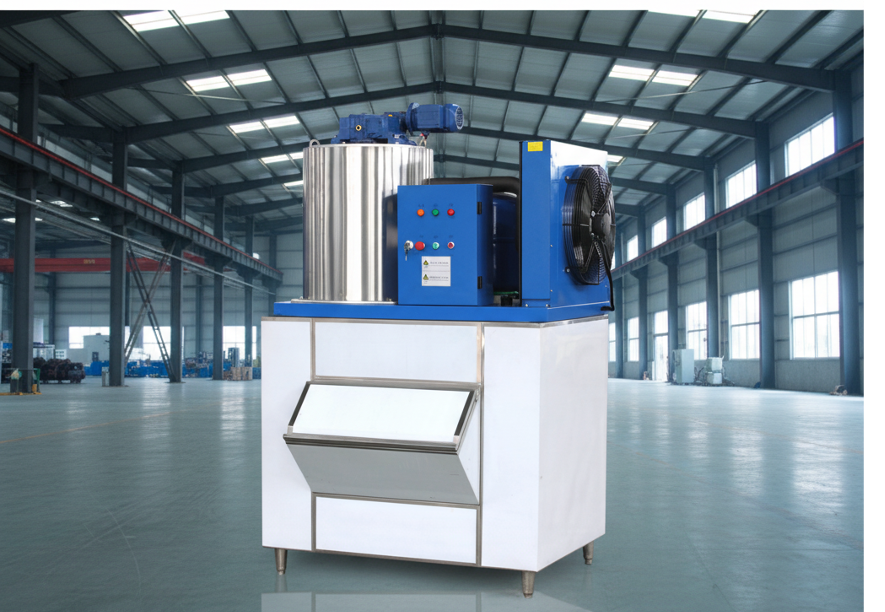

An industrial flake ice machine is a specialized refrigeration system. It produces thin and dry fragments of ice. These flakes are sub-cooled for better performance. Standard cube ice machines use different methods. Flake ice grows on a stationary drum.

The machine relies on several core components:

• The Evaporator Drum: This is the heart of the machine. We use high-grade 304 stainless steel for this part.
• The Ice Blade: This scraper harvests the ice. It does not touch the drum surface directly. This design minimizes mechanical wear.
• The Refrigeration Unit: We use world-class compressors. These parts drive the entire cooling cycle.
• The Water Circulation System: This system creates a constant film of water. It ensures that the ice production stays uniform.

The Physics of Rapid Cooling

The process starts with water and a cold drum. The system sprays water onto the inner wall of the drum. Extreme temperature differences cause a fast reaction. The water freezes instantly into a thin layer of ice. A rotating blade then cracks this layer. The result is dry and irregular flakes.

Flakes are usually 1.5mm to 2.2mm thick. This thinness creates a massive surface area. This area allows for instantaneous heat transfer. Flake ice cools much faster than block ice. It is the best choice for rapid temperature reduction.

Technical Expertise: The Science of Refrigeration

Our engineers focus on technical details. These details make our machines professional-grade.

1. Brine System Principles

The physics of ice change with salinity. Many industrial applications use brine systems. We add a precise amount of salt to the water. This salt lowers the freezing point of the liquid. It also changes the texture of the ice. The ice becomes softer and less abrasive. This protection is vital for sensitive products like fish.

2. Hot Gas Defrosting Technology

Industrial operations often run 24 hours a day. Frost can build up inside the system. Focusun uses Hot Gas Defrosting. We divert high-temperature refrigerant vapor through the system. This gas clears frost quickly. It allows the machine to maintain its 15-20 year design life.

3. Energy Efficiency and ROI

Industrial power costs are a major concern. We engineer our machines to be efficient. We maximize the Coefficient of Performance. Our designs optimize airflow in the unit. Water-cooled condensers work best in high-heat regions. These features reduce energy use by 20% compared to old models.

Real-World Experience: Solving Tough Challenges

Concrete Cooling in 35°C Heat

Large infrastructure projects face many hurdles. Massive concrete pours generate internal heat. High ambient temperatures make this worse. If concrete cures too fast, it will crack. Cracks compromise the structural integrity of a bridge or dam.

The Focusun Solution: We recently worked on a tropical bridge project. The ambient temperature reached 35°C frequently.

• The Challenge: We needed to deliver dry ice for a mixer.
• The Process: Our team used sub-cooled flake ice.
• The Result: The client lowered the concrete temperature to 15°C. This ensured a zero-defect cure for the structure.

Comparing Ice Systems for Smart Decisions

Every cooling medium has pros and cons. Engineers must compare them carefully.

How to Optimize Your Ice Production

Step-by-Step Implementation Guide

1. Calculate Your Load: You must know your peak demand. Use specific formulas to find the required ice mass.
2. Assess Your Environment: Air-cooled units work in dry areas. Water-cooled units provide better efficiency in heat.
3. Integrate Automation: Connect your ice machine to your production line. This reduces labor costs and prevents contamination.

Maintenance Checklist for Longevity

A Focusun machine can last 20 years with care. Follow these steps for the best results:

• Daily Tasks: Check the water levels. Ensure the ice bin sensor is clean.
• Monthly Tasks: Inspect the ice blade for sharpness. Clean the condenser fins to improve airflow.
• Quarterly Tasks: Test the brine dosing pump. Check the entire system for refrigerant leaks.

Trust and Authority: The Focusun Difference

Choosing a partner is a major decision. Focusun offers more than just hardware.

• International Certification: Our machines meet global standards. We hold HACCP, FDA, and CE certifications. These ensure safety for food and industrial use.
• Resilience in Harsh Conditions: We build systems for marine environments. Our materials resist salt-spray corrosion. We also support projects in remote field locations.
• Financial Transparency: We provide clear ROI analysis. Most clients see a full return on investment in 18 to 24 months. This comes from lower energy bills and fewer repairs.

FAQ: Common Technical Questions

Q: Does ambient temperature change ice output? A: Yes, extreme heat can lower efficiency. Focusun uses oversized condensers for this reason. Our machines maintain rated output even at 35°C.

Q: Can I use seawater for ice making? A: Yes, we offer marine-grade machines. These units use anti-corrosive materials. They are perfect for fishing vessels at sea.

Q: How do I handle power surges in remote areas? A: Our industrial units include electrical protection. The system monitors phases and prevents overloads. This protects your investment from unstable grids.

Secure Your Industrial Cooling Future

Do not let old technology slow your business down. Inefficient cooling costs money every day. Focusun provides the engineering expertise you need. We design solutions for chemical plants and logistics hubs. We also support large-scale construction projects.
