Focusun Tube Ice Machine
Focusun™ Tube Ice Machines adopt the world's most advanced tube ice making technology and we are proud to be one of the global leading manufacturers of this innovative cooling solution. We are also honored to be carrying on the proud tradition of our company's founder Prof. Jürgen Hans and inventor of the first industrial tube ice plant that produced ice for human consumption.
We have a wide range of Tube Ice solutions: you can choose either from a small or large capacity tube ice plant depending on your requirement. Our Tube Ice is hollow, cylindrical ice with external diameter of ø22, ø29, ø32 or ø35 mm and length of 25 - 50 mm. The diameter of the inner hole is usually ø5 - 10 mm, but can be adjusted according to the ice making time.
Choose from our small capacity Tube Ice Machines ranging from 1 to 8 Tons tube ice production per day or for bigger production capacity, choose our large capacity Tube Ice Plants ranging from 10 to 50 Tons per/24hrs production. But remember, you can customize the production capacity of your Tube Ice Plant, including the dimensions of your ice tubes to fit your requirement.
Here at Focusun, we set no limit to our competence. We believe the sky is the limit! Contact us now and find out more.
Focusun, the global leader in ice cooling solutions!
- Overview
- Small Capacity
- Large Capacity

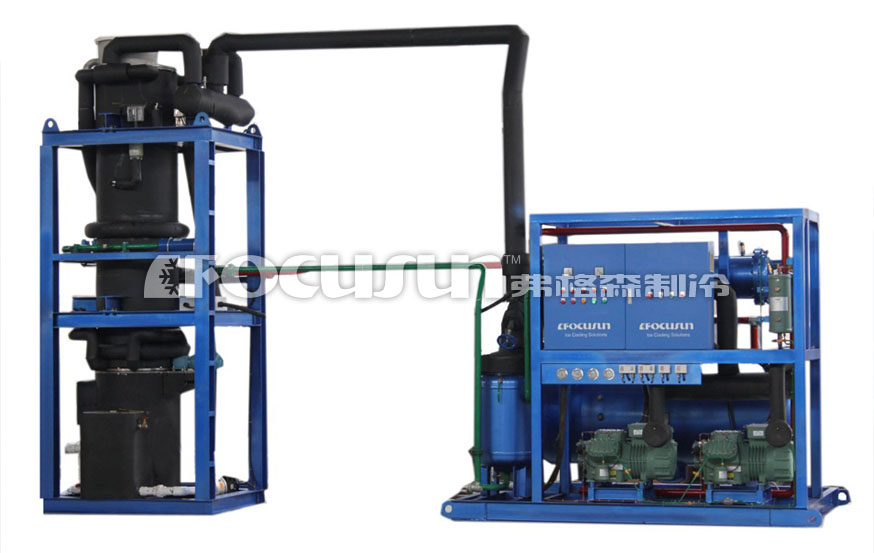

Focusun is endlessly proud to be the inventor of the first industrial Ice Machine that produced ice for human consumption (cylindrical ice which is now called Tube Ice). Over 80 years, Focusun has accumulated rich experience in designing and manufacturing Ice Machines as well as other Ice Solutions such as Ice Storages with or without Refrigeration System, Concrete Cooling Systems, Mine Cooling Systems, Vacuum Coolers, Water Chillers, Ice Packaging Machines and more. We keep pursuing the innovation of manufacturing ice cooling technology. Most important is that we keep innovating rather than resting on our past glories.

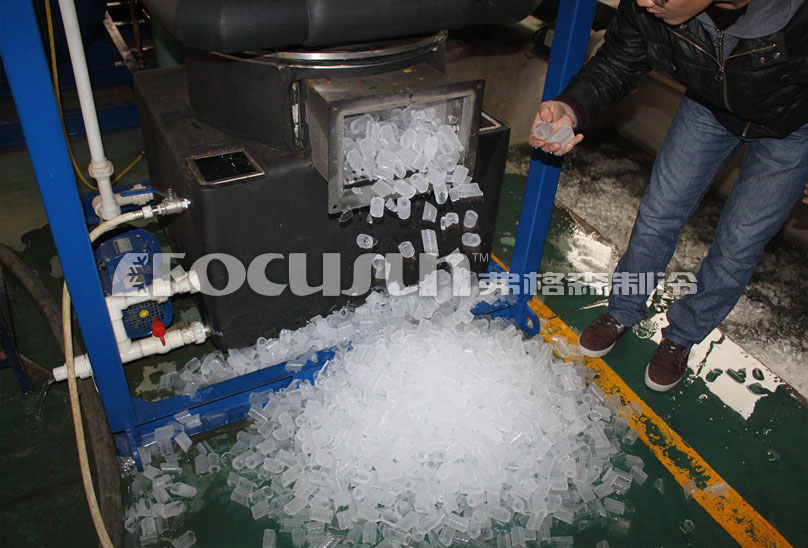

Focusun Tube Ice Machines directly use clean fresh water to make ice. Our original Pre-Purify™ patent technology makes ice quality reach international standards of the American Water Association WQA. The use of stainless steel SUS304, PE, aluminum alloy plate-type evaporators is according with health and safety requirements, thus the Tube Ice is tasteless, hygienic, transparent and completely conforms to food standards. It can be directly consumed or used in chilling drinks, mixing wines or cooling/keeping produce fresh.
We divide Tube Ice Machines into two categories, small capacity Tube Ice Plants (daily output ranging from 1000kgs to 8000kgs) and large capacity Tube Ice Plants (daily output ranging from 10000kgs to 50000kgs). The Tube Ice is hollow, cylindrical, transparent ice with external diameters of ø22, ø29, ø32, ø35 mm, ranging from 25 - 50 mm in length. The inner hole, typically ø5 - 10 mm long, can be adjusted according to ice-making time. Tube Ice has a good air permeability and long storage life. All our machines can be customized according to your requirements.
- FIT-10
- FIT-30
- FIT-50
- FIT-60
- FIT-80
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
1 Ton Small Capacity Tube Ice Machine

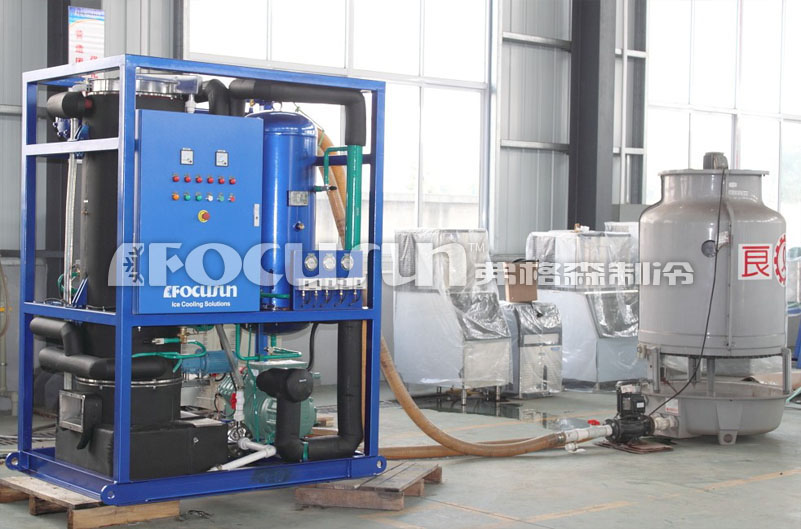

Focusun small capacity Tube Ice Plant ranges from 1 tons/day to 8 tons/day with all equipments assembled in a steel frame. Because of its compact and space-saving design, it's suitable for container shipment, easy to move and install. What's more, it's also easy to operate. Just connect to a power and water source and the Ice Plant is ready to be used.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | / | R22 or R404A | |
| Capacity | Kg/day | 1000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 4.74 |
| Installment power | Kw | 6 | |
| Operating power of cutter | Kw | 0.37 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 7.75 | |
| Operating power | Kw | 3.12 | |
| Compressor COP/EER | Kw/kw | 2.49 | |
| Horse power | Hp | 4 | |
| Condenser | Fan power | Kw | 0.7 |
| Cooling way | Air cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 1400×800×1800 |
| Size of condenser | (L×W×H)(mm) | 1200×400×750 | |
| Size of water feeding pipe | 1/2" | ||
| Weight of unit | Operating weight of tube ice maker | Kg | 780 |
| Operating weight of condenser | Kg | 48 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 1 Ton Small Capacity Tube Ice Machine
Standard power supply for small capacity Tube Ice Plant is 380V/3P/50Hz and standard cooling mode is air cooling. But Focusun advanced technology allows you to customize the Tube Ice Maker to suit your needs and preferences. To ensure the high-quality of our machines, over 80% of the components are from world renowned brands like Bitzer, Danfoss, Siemens, etc.
Photos of 1 Ton Small Capacity Tube Ice Machine
Focusun Tube Ice Plants have a modular design for simple maintenance on site and frequent movement. All parts in contact with water are made of stainless steel SUS304, PE and aluminum alloy plate to ensure high quality and sanitary tube ice. Each part is subject to strict technical tests before being installed, so our machines can stand decades of trouble-free operation.
1 Ton Small Capacity Tube Ice Machine
Tube Ice is widely used in hotels, restaurants, bars, food processing, fishing industry and also a variety of laboratory and medical applications. Tube Ice is formed inside a heat exchange pipe. The more water circulates inside the pipe, the thicker the ice will be and the smaller the inner hole will become. Usually, the external diameters are ø22, ø29, ø32 and ø35mm while the diameter of the inner hole typically ranges from ø5 - 10mm, but can be adjusted according to the ice-making time.
Clients who purchased our 1T Tube Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Focusun was able to customize a 50t or larger tube ice machine for our ice project. We are satisfied with their technical knowhow and professionalism.
Associated Construction & Investment Co.LLC
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my tube ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun tube ice plants.
Grand Bay (Malaysia)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
3 Ton Small Capacity Tube Ice Machine
Focusun small capacity Tube Ice Plant ranges from 1 tons/day to 8 tons/day with all equipments assembled in a steel frame. Because of its compact and space-saving design, it's suitable for container shipment, easy to move and install. What's more, it's also easy to operate. Just connect to a power and water source and the Ice Plant is ready to be used.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 3000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 11.01 |
| Installment power | Kw | 13.5 | |
| Operating power of cutter | Kw | 0.37 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 24.5 | |
| Operating power | Kw | 8.89 | |
| Compressor COP/EER | Kw/kw | 2.76 | |
| Horse power | Hp | 15 | |
| Condenser | Fan power | Kw | 1.2 |
| Cooling way | Air cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 1700×920×2000 |
| Size of condenser | (L×W×H)(mm) | 1400×1200×1350 | |
| Size of water feeding pipe | 1/2" | ||
| Weight of unit | Operating weight of tube ice maker | Kg | 1250 |
| Operating weight of condenser | Kg | 125 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 3 Ton Small Capacity Tube Ice Machine
Standard power supply for small capacity Tube Ice Plant is 380V/3P/50Hz and standard cooling mode is air cooling. But Focusun advanced technology allows you to customize the Tube Ice Maker to suit your needs and preferences. To ensure the high-quality of our machines, over 80% of the components are from world renowned brands like Bitzer, Danfoss, Siemens, etc.
Photos of 3 Ton Small Capacity Tube Ice Machine
Focusun Tube Ice Plants have a modular design for simple maintenance on site and frequent movement. All parts in contact with water are made of stainless steel SUS304, PE and aluminum alloy plate to ensure high quality and sanitary tube ice. Each part is subject to strict technical tests before being installed, so our machines can stand decades of trouble-free operation.
3 Ton Small Capacity Tube Ice Machine
Tube Ice is widely used in hotels, restaurants, bars, food processing, fishing industry and also a variety of laboratory and medical applications. Tube Ice is formed inside a heat exchange pipe. The more water circulates inside the pipe, the thicker the ice will be and the smaller the inner hole will become. Usually, the external diameters are ø22, ø29, ø32 and ø35mm while the diameter of the inner hole typically ranges from ø5 - 10mm, but can be adjusted according to the ice-making time.
Clients who purchased our 3T Tube Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Focusun was able to customize a 50t or larger tube ice machine for our ice project. We are satisfied with their technical knowhow and professionalism.
Associated Construction & Investment Co.LLC
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my tube ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun tube ice plants.
Grand Bay (Malaysia)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
5 Ton Small Capacity Tube Ice Machine
Focusun small capacity Tube Ice Plant ranges from 1 tons/day to 8 tons/day with all equipments assembled in a steel frame. Because of its compact and space-saving design, it's suitable for container shipment, easy to move and install. What's more, it's also easy to operate. Just connect to a power and water source and the Ice Plant is ready to be used.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 5000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 16.03 |
| Installment power | Kw | 20 | |
| Operating power of cutter | Kw | 0.37 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 36.4 | |
| Operating power | Kw | 13.51 | |
| Compressor COP/EER | Kw/kw | 2.7 | |
| Horse power | Hp | 25 | |
| Condenser | Fan power | Kw | 1.6 |
| Cooling way | Air cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 1700×1200×2200 |
| Size of condenser | (L×W×H)(mm) | 1400×1250×1350 | |
| Size of water feeding pipe | 1/2" | ||
| Weight of unit | Operating weight of tube ice maker | Kg | 1460 |
| Operating weight of condenser | Kg | 150 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 5 Ton Small Capacity Tube Ice Machine
Standard power supply for small capacity Tube Ice Plant is 380V/3P/50Hz and standard cooling mode is air cooling. But Focusun advanced technology allows you to customize the Tube Ice Maker to suit your needs and preferences. To ensure the high-quality of our machines, over 80% of the components are from world renowned brands like Bitzer, Danfoss, Siemens, etc.
Photos of 5 Ton Small Capacity Tube Ice Machine
Focusun Tube Ice Plants have a modular design for simple maintenance on site and frequent movement. All parts in contact with water are made of stainless steel SUS304, PE and aluminum alloy plate to ensure high quality and sanitary tube ice. Each part is subject to strict technical tests before being installed, so our machines can stand decades of trouble-free operation.
5 Ton Small Capacity Tube Ice Machine
Tube Ice is widely used in hotels, restaurants, bars, food processing, fishing industry and also a variety of laboratory and medical applications. Tube Ice is formed inside a heat exchange pipe. The more water circulates inside the pipe, the thicker the ice will be and the smaller the inner hole will become. Usually, the external diameters are ø22, ø29, ø32 and ø35mm while the diameter of the inner hole typically ranges from ø5 - 10mm, but can be adjusted according to the ice-making time.
Clients who purchased our 5T Tube Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Focusun was able to customize a 50t or larger tube ice machine for our ice project. We are satisfied with their technical knowhow and professionalism.
Associated Construction & Investment Co.LLC
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my tube ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun tube ice plants.
Grand Bay (Malaysia)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
6 Ton Small Capacity Tube Ice Machine
Focusun small capacity Tube Ice Plant ranges from 1 tons/day to 8 tons/day with all equipments assembled in a steel frame. Because of its compact and space-saving design, it's suitable for container shipment, easy to move and install. What's more, it's also easy to operate. Just connect to a power and water source and the Ice Plant is ready to be used.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 6000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 18.42 |
| Installment power | Kw | 28 | |
| Operating power of cutter | Kw | 0.37 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 41.8 | |
| Operating power | Kw | 15.9 | |
| Compressor COP/EER | Kw/kw | 2.63 | |
| Horse power | Hp | 30 | |
| Condenser | Fan power | Kw | 1.6 |
| Cooling way | Air cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 1800×1250×2200 |
| Size of condenser | (L×W×H)(mm) | 2100×1200×1350 | |
| Size of water feeding pipe | 1/2" | ||
| Weight of unit | Operating weight of tube ice maker | Kg | 1680 |
| Operating weight of condenser | Kg | 185 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 6 Ton Small Capacity Tube Ice Machine
Standard power supply for small capacity Tube Ice Plant is 380V/3P/50Hz and standard cooling mode is air cooling. But Focusun advanced technology allows you to customize the Tube Ice Maker to suit your needs and preferences. To ensure the high-quality of our machines, over 80% of the components are from world renowned brands like Bitzer, Danfoss, Siemens, etc.
Photos of 6 Ton Small Capacity Tube Ice Machine
Focusun Tube Ice Plants have a modular design for simple maintenance on site and frequent movement. All parts in contact with water are made of stainless steel SUS304, PE and aluminum alloy plate to ensure high quality and sanitary tube ice. Each part is subject to strict technical tests before being installed, so our machines can stand decades of trouble-free operation.
6 Ton Small Capacity Tube Ice Machine
Tube Ice is widely used in hotels, restaurants, bars, food processing, fishing industry and also a variety of laboratory and medical applications. Tube Ice is formed inside a heat exchange pipe. The more water circulates inside the pipe, the thicker the ice will be and the smaller the inner hole will become. Usually, the external diameters are ø22, ø29, ø32 and ø35mm while the diameter of the inner hole typically ranges from ø5 - 10mm, but can be adjusted according to the ice-making time.
Clients who purchased our 6T Tube Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Focusun was able to customize a 50t or larger tube ice machine for our ice project. We are satisfied with their technical knowhow and professionalism.
Associated Construction & Investment Co.LLC
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my tube ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun tube ice plants.
Grand Bay (Malaysia)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
8 Ton Small Capacity Tube Ice Machine
Focusun small capacity Tube Ice Plant ranges from 1 tons/day to 8 tons/day with all equipments assembled in a steel frame. Because of its compact and space-saving design, it's suitable for container shipment, easy to move and install. What's more, it's also easy to operate. Just connect to a power and water source and the Ice Plant is ready to be used.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 8000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 24.35 |
| Installment power | Kw | 30 | |
| Operating power of cutter | Kw | 0.55 | |
| Operating power of cold water pump | Kw | 1.2 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 52.5 | |
| Operating power | Kw | 20.8 | |
| Compressor COP/EER | Kw/kw | 2.53 | |
| Horse power | Hp | 40 | |
| Condenser | Fan power | Kw | 1.8 |
| Cooling way | Air cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 2000×1450×2200 |
| Size of condenser | (L×W×H)(mm) | 2550×1200×1350 | |
| Size of water feeding pipe | 1/2" | ||
| Weight of unit | Operating weight of tube ice maker | Kg | 2100 |
| Operating weight of condenser | Kg | 256 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 8 Ton Small Capacity Tube Ice Machine
Standard power supply for small capacity Tube Ice Plant is 380V/3P/50Hz and standard cooling mode is air cooling. But Focusun advanced technology allows you to customize the Tube Ice Maker to suit your needs and preferences. To ensure the high-quality of our machines, over 80% of the components are from world renowned brands like Bitzer, Danfoss, Siemens, etc.
Photos of 8 Ton Small Capacity Tube Ice Machine
Focusun Tube Ice Plants have a modular design for simple maintenance on site and frequent movement. All parts in contact with water are made of stainless steel SUS304, PE and aluminum alloy plate to ensure high quality and sanitary tube ice. Each part is subject to strict technical tests before being installed, so our machines can stand decades of trouble-free operation.
8 Ton Small Capacity Tube Ice Machine
Tube Ice is widely used in hotels, restaurants, bars, food processing, fishing industry and also a variety of laboratory and medical applications. Tube Ice is formed inside a heat exchange pipe. The more water circulates inside the pipe, the thicker the ice will be and the smaller the inner hole will become. Usually, the external diameters are ø22, ø29, ø32 and ø35mm while the diameter of the inner hole typically ranges from ø5 - 10mm, but can be adjusted according to the ice-making time.
Clients who purchased our 8T Tube Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Focusun was able to customize a 50t or larger tube ice machine for our ice project. We are satisfied with their technical knowhow and professionalism.
Associated Construction & Investment Co.LLC
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my tube ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun tube ice plants.
Grand Bay (Malaysia)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- FIT-100
- FIT-150
- FIT-200
- FIT-250
- FIT-300
- FIT-350
- FIT-400
- FIT-500
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
10 Tons Large Capacity Tube Ice Machine
Focusun large capacity Tube Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: evaporator module, compressor module and cooling tower module. The daily capacity ranges from 10 tons/day to 50 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 10000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 34.95 |
| Installment power | Kw | 45 | |
| Operating power of cutter | Kw | 0.75 | |
| Operating power of cold water pump | Kw | 1.1 | |
| Fan motor of cooling tower | Kw | 1.1 | |
| Operating power of cold water pump | Kw | 2.2 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 74.3 | |
| Operating power | Kw | 29.8 | |
| Compressor COP/EER | Kw/kw | 2.5 | |
| Horse power | Hp | 50 | |
| Cooling way | Water cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | Unit:1800×1500×1600 |
| Evaporator:1180×1180×3500 | |||
| Size of cooling tower | (O.D.×H)(mm) | Φ2000×2410 | |
| Size of liquid pipe of cooling tower | 3/4" | ||
| Size of cooling water pipe | 2-1/2" | ||
| Size of waterinlet pipe of ice maker | 1" | ||
| Size of ice outlet | mm | 300×250 | |
| Weight of unit | Operating weight of tube ice maker | Kg | Unit:1560 |
| Evaporator:2296 | |||
| Operating weight of cooling tower | Kg | 670 | |
| Water supply pressure requirement | Bar | 1.5 | |
Product details and specifications about 1 Tons Large Capacity Tube Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 10 Tons Large Capacity Tube Ice Machine
The standard cooling method of our large capacity Tube Ice Maker is water cooling with a cooling tower. The whole machine consists of 3 parts: evaporator module, compressor module and cooling tower module. Our Tube Ice Plants operate with a PLC controller and one-key operation.
10 Tons Large Capacity Tube Ice Machine
All surfaces in contact with with water are covered with stainless steel SUS304 which conforms to food grade specifications. Tube ice is formed on the heat exchange pipe which can be divided into 4 specifications, ø22, ø29, ø32, ø35mm, ranging from 25 - 50mm in length. The diameter of the inner hole can be adjusted according to ice-making time. Tube Ice has good air permeability and a long storage life.
Clients who purchased our 10T Tube Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Focusun was able to customize a 50t or larger tube ice machine for our ice project. We are satisfied with their technical knowhow and professionalism.
Associated Construction & Investment Co.LLC
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my tube ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun tube ice plants.
Grand Bay (Malaysia)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
15 Tons Large Capacity Tube Ice Machine
Focusun large capacity Tube Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: evaporator module, compressor module and cooling tower module. The daily capacity ranges from 10 tons/day to 50 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 15000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 48.4 |
| Installment power | Kw | 60 | |
| Operating power of cutter | Kw | 1.1 | |
| Operating power of cold water pump | Kw | 1.5 | |
| Fan motor of cooling tower | Kw | 1.5 | |
| Operating power of cold water pump | Kw | 3.7 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 109.4 | |
| Operating power | Kw | 40.6 | |
| Compressor COP/EER | Kw/kw | 2.7 | |
| Horse power | Hp | 35×2 | |
| Cooling way | Water cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | Unit:2000×1800×1600 |
| Evaporator:1250×1250×4200 | |||
| Size of cooling tower | (O.D.×H)(mm) | Φ2175×2565 | |
| Size of liquid pipe of cooling tower | 3/4" | ||
| Size of cooling water pipe | 2-1/2" | ||
| Size of waterinlet pipe of ice maker | 1" | ||
| Size of ice outlet | mm | 400×300 | |
| Weight of unit | Operating weight of tube ice maker | Kg | Unit:1890 |
| Evaporator:2685 | |||
| Operating weight of cooling tower | Kg | 1120 | |
| Water supply pressure requirement | Bar | 1.5 | |
Product details and specifications about 1.5 Tons Large Capacity Tube Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 15 Tons Large Capacity Tube Ice Machine
The standard cooling method of our large capacity Tube Ice Maker is water cooling with a cooling tower. The whole machine consists of 3 parts: evaporator module, compressor module and cooling tower module. Our Tube Ice Plants operate with a PLC controller and one-key operation.
15 Tons Large Capacity Tube Ice Machine
All surfaces in contact with with water are covered with stainless steel SUS304 which conforms to food grade specifications. Tube ice is formed on the heat exchange pipe which can be divided into 4 specifications, ø22, ø29, ø32, ø35mm, ranging from 25 - 50mm in length. The diameter of the inner hole can be adjusted according to ice-making time. Tube Ice has good air permeability and a long storage life.
Clients who purchased our 15T Tube Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Focusun was able to customize a 50t or larger tube ice machine for our ice project. We are satisfied with their technical knowhow and professionalism.
Associated Construction & Investment Co.LLC
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my tube ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun tube ice plants.
Grand Bay (Malaysia)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
20 Tons Large Capacity Tube Ice Machine
Focusun large capacity Tube Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: evaporator module, compressor module and cooling tower module. The daily capacity ranges from 10 tons/day to 50 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 20000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 68.5 |
| Installment power | Kw | 85 | |
| Operating power of cutter | Kw | 1.5 | |
| Operating power of cold water pump | Kw | 2.2 | |
| Fan motor of cooling tower | Kw | 1.5 | |
| Operating power of cold water pump | Kw | 3.7 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 148.6 | |
| Operating power | Kw | 59.6 | |
| Compressor COP/EER | Kw/kw | 2.5 | |
| Horse power | Hp | 50×2 | |
| Cooling way | Water cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | Unit:2200×2000×1800 |
| Evaporator:1350×1350×4600 | |||
| Size of cooling tower | (O.D.×H)(mm) | Φ2175×2565 | |
| Size of liquid pipe of cooling tower | 3/4" | ||
| Size of cooling water pipe | 2-1/2" | ||
| Size of waterinlet pipe of ice maker | 1" | ||
| Size of ice outlet | mm | 400×300 | |
| Weight of unit | Operating weight of tube ice maker | Kg | Unit:2260 |
| Evaporator:3650 | |||
| Operating weight of cooling tower | Kg | 1120 | |
| Water supply pressure requirement | Bar | 1.5 | |
Product details and specifications about 2 Tons Large Capacity Tube Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 20 Tons Large Capacity Tube Ice Machine
The standard cooling method of our large capacity Tube Ice Maker is water cooling with a cooling tower. The whole machine consists of 3 parts: evaporator module, compressor module and cooling tower module. Our Tube Ice Plants operate with a PLC controller and one-key operation.
20 Tons Large Capacity Tube Ice Machine
All surfaces in contact with with water are covered with stainless steel SUS304 which conforms to food grade specifications. Tube ice is formed on the heat exchange pipe which can be divided into 4 specifications, ø22, ø29, ø32, ø35mm, ranging from 25 - 50mm in length. The diameter of the inner hole can be adjusted according to ice-making time. Tube Ice has good air permeability and a long storage life.
Clients who purchased our 20T Tube Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Focusun was able to customize a 50t or larger tube ice machine for our ice project. We are satisfied with their technical knowhow and professionalism.
Associated Construction & Investment Co.LLC
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my tube ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun tube ice plants.
Grand Bay (Malaysia)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
25 Tons Large Capacity Tube Ice Machine
Focusun large capacity Tube Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: evaporator module, compressor module and cooling tower module. The daily capacity ranges from 10 tons/day to 50 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 25000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 85.3 |
| Installment power | Kw | 105 | |
| Operating power of cutter | Kw | 2.2 | |
| Operating power of cold water pump | Kw | 3.7 | |
| Fan motor of cooling tower | Kw | 2.2 | |
| Operating power of cold water pump | Kw | 5.5 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 188.1 | |
| Operating power | Kw | 71.7 | |
| Compressor COP/EER | Kw/kw | 2.63 | |
| Horse power | Hp | 40×3 | |
| Cooling way | Water cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | Unit:2400×2200×2000 |
| Evaporator:1450×1450×4800 | |||
| Size of cooling tower | (O.D.×H)(mm) | Φ2650×2645 | |
| Size of liquid pipe of cooling tower | 1" | ||
| Size of cooling water pipe | 4" | ||
| Size of waterinlet pipe of ice maker | 1" | ||
| Size of ice outlet | mm | 450×350 | |
| Weight of unit | Operating weight of tube ice maker | Kg | Unit:2680 |
| Evaporator:4260 | |||
| Operating weight of cooling tower | Kg | 1300 | |
| Water supply pressure requirement | Bar | 1.5 | |
Product details and specifications about 2.5 Tons Large Capacity Tube Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 25 Tons Large Capacity Tube Ice Machine
The standard cooling method of our large capacity Tube Ice Maker is water cooling with a cooling tower. The whole machine consists of 3 parts: evaporator module, compressor module and cooling tower module. Our Tube Ice Plants operate with a PLC controller and one-key operation.
25 Tons Large Capacity Tube Ice Machine
All surfaces in contact with with water are covered with stainless steel SUS304 which conforms to food grade specifications. Tube ice is formed on the heat exchange pipe which can be divided into 4 specifications, ø22, ø29, ø32, ø35mm, ranging from 25 - 50mm in length. The diameter of the inner hole can be adjusted according to ice-making time. Tube Ice has good air permeability and a long storage life.
Clients who purchased our 25T Tube Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Focusun was able to customize a 50t or larger tube ice machine for our ice project. We are satisfied with their technical knowhow and professionalism.
Associated Construction & Investment Co.LLC
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my tube ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun tube ice plants.
Grand Bay (Malaysia)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
30 Tons Large Capacity Tube Ice Machine
Focusun large capacity Tube Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: evaporator module, compressor module and cooling tower module. The daily capacity ranges from 10 tons/day to 50 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 30000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 105 |
| Installment power | Kw | 130 | |
| Operating power of cutter | Kw | 2.2 | |
| Operating power of cold water pump | Kw | 3.7 | |
| Fan motor of cooling tower | Kw | 2.2 | |
| Operating power of cold water pump | Kw | 7.5 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 222.9 | |
| Operating power | Kw | 89.4 | |
| Compressor COP/EER | Kw/kw | 2.5 | |
| Horse power | Hp | 50×3 | |
| Cooling way | Water cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | Unit:2800×2200×2000 |
| Evaporator:1450×1450×5200 | |||
| Size of cooling tower | (O.D.×H)(mm) | Φ3050×2780 | |
| Size of liquid pipe of cooling tower | 1" | ||
| Size of cooling water pipe | 4" | ||
| Size of waterinlet pipe of ice maker | 11-1/4" | ||
| Size of ice outlet | mm | 450×350 | |
| Weight of unit | Operating weight of tube ice maker | Kg | Unit:3280 |
| Evaporator:4860 | |||
| Operating weight of cooling tower | Kg | 1630 | |
| Water supply pressure requirement | Bar | 1.5 | |
Product details and specifications about 3 Tons Large Capacity Tube Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 30 Tons Large Capacity Tube Ice Machine
The standard cooling method of our large capacity Tube Ice Maker is water cooling with a cooling tower. The whole machine consists of 3 parts: evaporator module, compressor module and cooling tower module. Our Tube Ice Plants operate with a PLC controller and one-key operation.
30 Tons Large Capacity Tube Ice Machine
All surfaces in contact with with water are covered with stainless steel SUS304 which conforms to food grade specifications. Tube ice is formed on the heat exchange pipe which can be divided into 4 specifications, ø22, ø29, ø32, ø35mm, ranging from 25 - 50mm in length. The diameter of the inner hole can be adjusted according to ice-making time. Tube Ice has good air permeability and a long storage life.
Clients who purchased our 30T Tube Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Focusun was able to customize a 50t or larger tube ice machine for our ice project. We are satisfied with their technical knowhow and professionalism.
Associated Construction & Investment Co.LLC
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my tube ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun tube ice plants.
Grand Bay (Malaysia)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
35 Tons Large Capacity Tube Ice Machine
Focusun large capacity Tube Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: evaporator module, compressor module and cooling tower module. The daily capacity ranges from 10 tons/day to 50 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 35000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 116 |
| Installment power | Kw | 140 | |
| Operating power of cutter | Kw | 3.7 | |
| Operating power of cold water pump | Kw | 5.5 | |
| Fan motor of cooling tower | Kw | 3.7 | |
| Operating power of cold water pump | Kw | 7.5 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 250.8 | |
| Operating power | Kw | 95.6 | |
| Compressor COP/EER | Kw/kw | 2.63 | |
| Horse power | Hp | 40×4 | |
| Cooling way | Water cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | Unit:3500×2200×2000 |
| Evaporator:1500×1500×5500 | |||
| Size of cooling tower | (O.D.×H)(mm) | Φ3770×3490 | |
| Size of liquid pipe of cooling tower | 11-1/4" | ||
| Size of cooling water pipe | 4" | ||
| Size of waterinlet pipe of ice maker | 1-1/4" | ||
| Size of ice outlet | mm | 500×400 | |
| Weight of unit | Operating weight of tube ice maker | Kg | Unit:3860 |
| Evaporator:5650 | |||
| Operating weight of cooling tower | Kg | 2730 | |
| Water supply pressure requirement | Bar | 1.5 | |
Product details and specifications about 3.5 Tons Large Capacity Tube Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 35 Tons Large Capacity Tube Ice Machine
The standard cooling method of our large capacity Tube Ice Maker is water cooling with a cooling tower. The whole machine consists of 3 parts: evaporator module, compressor module and cooling tower module. Our Tube Ice Plants operate with a PLC controller and one-key operation.
35 Tons Large Capacity Tube Ice Machine
All surfaces in contact with with water are covered with stainless steel SUS304 which conforms to food grade specifications. Tube ice is formed on the heat exchange pipe which can be divided into 4 specifications, ø22, ø29, ø32, ø35mm, ranging from 25 - 50mm in length. The diameter of the inner hole can be adjusted according to ice-making time. Tube Ice has good air permeability and a long storage life.
Clients who purchased our 35T Tube Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Focusun was able to customize a 50t or larger tube ice machine for our ice project. We are satisfied with their technical knowhow and professionalism.
Associated Construction & Investment Co.LLC
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my tube ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun tube ice plants.
Grand Bay (Malaysia)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
40 Tons Large Capacity Tube Ice Machine
Focusun large capacity Tube Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: evaporator module, compressor module and cooling tower module. The daily capacity ranges from 10 tons/day to 50 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 40000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 139.6 |
| Installment power | Kw | 170 | |
| Operating power of cutter | Kw | 3.7 | |
| Operating power of cold water pump | Kw | 5.5 | |
| Fan motor of cooling tower | Kw | 3.7 | |
| Operating power of cold water pump | Kw | 7.5 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 297.2 | |
| Operating power | Kw | 119.2 | |
| Compressor COP/EER | Kw/kw | 2.5 | |
| Horse power | Hp | 50×4 | |
| Cooling way | Water cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | Unit:3600×2200×2000 |
| Evaporator:1500×1500×5800 | |||
| Size of cooling tower | (O.D×H)(mm) | Φ3770×3490 | |
| Size of liquid pipe of cooling tower | 1-1/4" | ||
| Size of cooling water pipe | 4" | ||
| Size of waterinlet pipe of ice maker | 1-1/4" | ||
| Size of ice outlet | mm | 500×400 | |
| Weight of unit | Operating weight of tube ice maker | Kg | Unit:4250 |
| Evaporator:5890 | |||
| Operating weight of cooling tower | Kg | 2730 | |
| Water supply pressure requirement | Bar | 1.5 | |
Product details and specifications about 4 Tons Large Capacity Tube Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 40 Tons Large Capacity Tube Ice Machine
The standard cooling method of our large capacity Tube Ice Maker is water cooling with a cooling tower. The whole machine consists of 3 parts: evaporator module, compressor module and cooling tower module. Our Tube Ice Plants operate with a PLC controller and one-key operation.
40 Tons Large Capacity Tube Ice Machine
All surfaces in contact with with water are covered with stainless steel SUS304 which conforms to food grade specifications. Tube ice is formed on the heat exchange pipe which can be divided into 4 specifications, ø22, ø29, ø32, ø35mm, ranging from 25 - 50mm in length. The diameter of the inner hole can be adjusted according to ice-making time. Tube Ice has good air permeability and a long storage life.
Clients who purchased our 40T Tube Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Focusun was able to customize a 50t or larger tube ice machine for our ice project. We are satisfied with their technical knowhow and professionalism.
Associated Construction & Investment Co.LLC
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my tube ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun tube ice plants.
Grand Bay (Malaysia)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
50 Tons Large Capacity Tube Ice Machine
Focusun large capacity Tube Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: evaporator module, compressor module and cooling tower module. The daily capacity ranges from 10 tons/day to 50 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 50000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 177 |
| Installment power | Kw | 220 | |
| Operating power of cutter | Kw | 5.5 | |
| Operating power of cold water pump | Kw | 5.5 | |
| Fan motor of cooling tower | Kw | 5.5 | |
| Operating power of cold water pump | Kw | 11.5 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 371.5 | |
| Operating power | Kw | 149 | |
| Compressor COP/EER | Kw/kw | 2.5 | |
| Horse power | Hp | 50×5 | |
| Cooling way | Water cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | Unit:4300×2200×2000 |
| Evaporator:1800×1800×6000 | |||
| Size of cooling tower | (O.D×H)(mm) | Φ3770×3690 | |
| Size of liquid pipe of cooling tower | 1-1/4" | ||
| Size of cooling water pipe | 6" | ||
| Size of waterinlet pipe of ice maker | 1-1/2" | ||
| Size of ice outlet | mm | 500×400 | |
| Weight of unit | Operating weight of tube ice maker | Kg | unit:4560 |
| Evaporator:6500 | |||
| Operating weight of cooling tower | Kg | 3770 | |
| Water supply pressure requirement | Bar | 1.5 | |
Product details and specifications about 5 Tons Large Capacity Tube Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 50 Tons Large Capacity Tube Ice Machine
The standard cooling method of our large capacity Tube Ice Maker is water cooling with a cooling tower. The whole machine consists of 3 parts: evaporator module, compressor module and cooling tower module. Our Tube Ice Plants operate with a PLC controller and one-key operation.
50 Tons Large Capacity Tube Ice Machine
All surfaces in contact with with water are covered with stainless steel SUS304 which conforms to food grade specifications. Tube ice is formed on the heat exchange pipe which can be divided into 4 specifications, ø22, ø29, ø32, ø35mm, ranging from 25 - 50mm in length. The diameter of the inner hole can be adjusted according to ice-making time. Tube Ice has good air permeability and a long storage life.
Clients who purchased our 50T Tube Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Focusun was able to customize a 50t or larger tube ice machine for our ice project. We are satisfied with their technical knowhow and professionalism.
Associated Construction & Investment Co.LLC
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my tube ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun tube ice plants.
Grand Bay (Malaysia)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
Contacts & Support
Focusun Refrigeration CorporationRoom 603, Baohong Center
No. 7755 Zhongchun Rd
Shanghai CHINA
ZipCode: 201100
Tel: +86-21-5108 9946
Fax: +86-21-5227 2259
Email: enquiry@focusun.com
Sales: sales@focusun.com
Marketing: marketing@focusun.com
Press: press@focusun.com
Newsletter: newsletter@focusun.com
