Focusun Plate Ice Machine
Focusun™ Plate Ice Plants adopt the world's most advanced Plate Ice making technology and we are proud to be one of the global leading manufacturers of this innovative cooling solution.
We have a wide range of Plate Ice solutions: you can choose either from a Small or Large capacity of Plate Ice cooling depending on your requirements. Our transparent Plate Ice is produced with dimensions of 40×40mm - 80×80mm in size, and 10mm - 15mm in thickness. The thickness can be adjusted according to ice-making time with the maximum gauge being 25mm.
You can choose from 1 to 6 tons Plate Ice production every 24 hours with the small capacity machines or 8 tons to 48 tons/24hrs of Plate Ice production for the large capacity Plate Ice Plants. But remember, you can customize the production capacity of your Plate Ice Plant, including the thickness and size of your Plate Ice to fit your requirements.
Here at Focusun, we set no limit to our competence. We believe the sky is the limit! Contact us now and find out more.
Focusun, the global leader in ice cooling solutions!
- Overview
- Small Capacity
- Large Capacity
Focusun offers you the best of tailored Plate Ice Making Systems. Not only do we supply the ice machines, but also offer you technological consultancy. Focusun manufactures the ice machines that reach high sanitary standards, so every evaporator of our Plate Ice Plant adopts stainless steel SUS304 and aluminum alloy plate chip.
Focusun Plate Ice Makers are divideded into small capacity and large capacity machines, ranging from 1Ton/Day to 48Tons/Day. Small capacity is our indoor standardized Plate Ice Plant which enjoys a reputation of high efficiency and low energy consumption. The modular design of the Plate Ice Maker simplifies the spot maintenance and the replacement of spare parts. Regarding the large capacity Plate Ice Plant, it is always used for our Dynamic Ice Storage System to reduce the valley-to-peak ratio of grid load. Dynamic Ice Storage is a cold ice storage air-conditioner which consumes low energy and operates under low cost.
The number of plate chips of the evaporator is adjustable according to daily capacity and special requirements. The dimensions of the Plate Ice can also be adjusted by the ice crushing system. Standard Plate Ice is an irregular sheet ice with about 40×40mm - 80×80mm in size, and 10 mm - 15mm in thickness. The thickness can be adjusted according to Ice-Making time with the maximum gauge being 30mm. After secondary crushing, Plate Ice is around 25*25mm.
Besides in Dynamic Ice Storage System, Focusun Plate Ice is applied to concrete mixing plants, chemical plants, mines, fresh vegetables, fishing and other aquatic food industry.
- FIP-10A
- FIP-20A
- FIP-30A
- FIP-50A
- FIP-60A
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
1 Ton Small Capacity Plate Ice Machine
Focusun small capacity Plate Ice Plant ranges from 1 tons/day to 6 tons/day with all equipments assembled in a steel frame. Because of its compact and space-saving design, it's suitable for container shipment, easy to move and install. What's more, it's also easy to operate and maintain. Just connect to a power and water source and the Ice Plant is ready to be used.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Powersupply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 1000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Operating power of cutter | Kw | 0.55 |
| Operating power of cold water pump | Kw | 0.55 | |
| Warm water pump | Kw | 0.37 | |
| Total running power | Kw | 6.69 | |
| Installment power | Kw | 8 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 7.66 | |
| Operating power | Kw | 4.52 | |
| Compressor COP/EER | Kw/kw | 1.69 | |
| Horse power | Hp | 5 | |
| Condenser | Fan power | Kw | 0.7 |
| Cooling way | Air cooling | ||
| Installment | Internaly installed | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 1700×1200×1700 |
| Size of condenser | (L×W×H)(mm) | -- | |
| Size of water feeding pipe | 1/2" | ||
| Operating weight | Operating weight of plate ice maker | Kg | 960 |
| Operating weight of condenser | Kg | -- | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 1 Ton Small Capacity Plate Ice Machine
Standard power supply for small capacity Plate Ice Plant is 380V/3P/50Hz and standard cooling mode is air cooling. But Focusun advanced technology allows you to customize the Plate Ice Maker to suit your needs and preferences. To ensure the high-quality of our machines, over 80% of the components are from world renowned brands like Bitzer, Danfoss, Siemens, etc.
1 Ton Small Capacity Plate Ice Machine
1 Ton Small Capacity Plate Ice Machine
1 Ton Small Capacity Plate Ice Machine
1 Ton Small Capacity Plate Ice Machine
1 Ton Small Capacity Plate Ice Machine
1 Ton Small Capacity Plate Ice Machine
1 Ton Small Capacity Plate Ice Machine
1 Ton Small Capacity Plate Ice Machine
Photos of 1 Ton Small Capacity Plate Ice Machine
Focusun Plate Ice Plants have a modular design for simple maintenance on site and frequent movement. All parts in contact with water are made of stainless steel SUS304, PE and aluminum alloy plate to ensure high quality and sanitary tube ice. Each part is subject to strict technical tests before being used, so our machine can stand decades of trouble-free operation.
1 Ton Small Capacity Plate Ice Machine

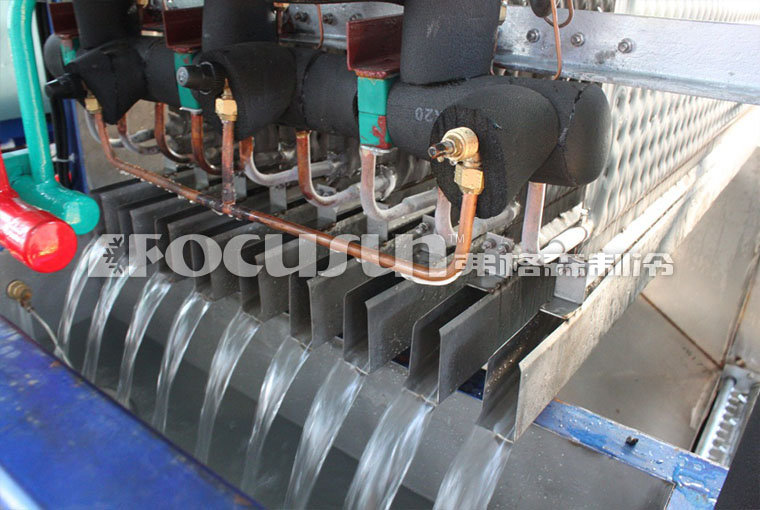

Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process takes only 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 1T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
2 Ton Small Capacity Plate Ice Machine
Focusun small capacity Plate Ice Plant ranges from 1 tons/day to 6 tons/day with all equipments assembled in a steel frame. Because of its compact and space-saving design, it's suitable for container shipment, easy to move and install. What's more, it's also easy to operate and maintain. Just connect to a power and water source and the Ice Plant is ready to be used.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Powersupply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 2000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Operating power of cutter | Kw | 0.55 |
| Operating power of cold water pump | Kw | 0.55 | |
| Warm water pump | Kw | 0.37 | |
| Total running power | Kw | 9.92 | |
| Installment power | Kw | 12 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 14.38 | |
| Operating power | Kw | 7.65 | |
| Compressor COP/EER | Kw/kw | 1.88 | |
| Horse power | Hp | 10 | |
| Condenser | Fan power | Kw | 0.8 |
| Cooling way | Air cooling | ||
| Installment | Internaly installed | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 2200×1600×2000 |
| Size of condenser | (L×W×H)(mm) | -- | |
| Size of water feeding pipe | 1/2" | ||
| Operating weight | Operating weight of plate ice maker | Kg | 1200 |
| Operating weight of condenser | Kg | -- | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 2 Ton Small Capacity Plate Ice Machine
Standard power supply for small capacity Plate Ice Plant is 380V/3P/50Hz and standard cooling mode is air cooling. But Focusun advanced technology allows you to customize the Plate Ice Maker to suit your needs and preferences. To ensure the high-quality of our machines, over 80% of the components are from world renowned brands like Bitzer, Danfoss, Siemens, etc.
- 2 Ton Small Capacity Plate Ice Machine
- 2 Ton Small Capacity Plate Ice Machine
2 Ton Small Capacity Plate Ice Machine- 2 Ton Small Capacity Plate Ice Machine
- 2 Ton Small Capacity Plate Ice Machine
- 2 Ton Small Capacity Plate Ice Machine
- 2 Ton Small Capacity Plate Ice Machine
- 2 Ton Small Capacity Plate Ice Machine
Photos of 2 Ton Small Capacity Plate Ice Machine
Focusun Plate Ice Plants have a modular design for simple maintenance on site and frequent movement. All parts in contact with water are made of stainless steel SUS304, PE and aluminum alloy plate to ensure high quality and sanitary tube ice. Each part is subject to strict technical tests before being used, so our machine can stand decades of trouble-free operation.
2 Ton Small Capacity Plate Ice Machine
Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process takes only 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 2T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
3 Ton Small Capacity Plate Ice Machine
Focusun small capacity Plate Ice Plant ranges from 1 tons/day to 6 tons/day with all equipments assembled in a steel frame. Because of its compact and space-saving design, it's suitable for container shipment, easy to move and install. What's more, it's also easy to operate and maintain. Just connect to a power and water source and the Ice Plant is ready to be used.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Powersupply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 3000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Operating power of cutter | Kw | 0.55 |
| Operating power of cold water pump | Kw | 0.55 | |
| Warm water pump | Kw | 0.37 | |
| Total running power | Kw | 14.41 | |
| Installment power | Kw | 18 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 21.4 | |
| Operating power | Kw | 11.84 | |
| Compressor COP/EER | Kw/kw | 1.8 | |
| Horse power | Hp | 15 | |
| Condenser | Fan power | Kw | 1.1 |
| Cooling way | Air cooling | ||
| Installment | Externaly installed | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 2200×1500×2000 |
| Size of condenser | (L×W×H)(mm) | 1300×1200×1450 | |
| Size of water feeding pipe | 1/2" | ||
| Operating weight | Operating weight of plate ice maker | Kg | 1250 |
| Operating weight of condenser | Kg | 89 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 3 Ton Small Capacity Plate Ice Machine
Standard power supply for small capacity Plate Ice Plant is 380V/3P/50Hz and standard cooling mode is air cooling. But Focusun advanced technology allows you to customize the Plate Ice Maker to suit your needs and preferences. To ensure the high-quality of our machines, over 80% of the components are from world renowned brands like Bitzer, Danfoss, Siemens, etc.
Photos of 3 Ton Small Capacity Plate Ice Machine
Focusun Plate Ice Plants have a modular design for simple maintenance on site and frequent movement. All parts in contact with water are made of stainless steel SUS304, PE and aluminum alloy plate to ensure high quality and sanitary tube ice. Each part is subject to strict technical tests before being used, so our machine can stand decades of trouble-free operation.
3 Ton Small Capacity Plate Ice Machine
Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process takes only 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 3T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
5 Ton Small Capacity Plate Ice Machine
Focusun small capacity Plate Ice Plant ranges from 1 tons/day to 6 tons/day with all equipments assembled in a steel frame. Because of its compact and space-saving design, it's suitable for container shipment, easy to move and install. What's more, it's also easy to operate and maintain. Just connect to a power and water source and the Ice Plant is ready to be used.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Powersupply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 5000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Operating power of cutter | Kw | 0.75 |
| Operating power of cold water pump | Kw | 0.75 | |
| Warm water pump | Kw | 0.55 | |
| Total running power | Kw | 25.15 | |
| Installment power | Kw | 30 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 37.1 | |
| Operating power | Kw | 20.9 | |
| Compressor COP/EER | Kw/kw | 1.78 | |
| Horse power | Hp | 30 | |
| Condenser | Fan power | Kw | 2.2 |
| Cooling way | Air cooling | ||
| Installment | Externaly installed | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 2000×1800×2200 |
| Size of condenser | (L×W×H)(mm) | 2280×1200×1450 | |
| Size of water feeding pipe | 1/2" | ||
| Operating weight | Operating weight of plate ice maker | Kg | 1550 |
| Operating weight of condenser | Kg | 168 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 5 Ton Small Capacity Plate Ice Machine
Standard power supply for small capacity Plate Ice Plant is 380V/3P/50Hz and standard cooling mode is air cooling. But Focusun advanced technology allows you to customize the Plate Ice Maker to suit your needs and preferences. To ensure the high-quality of our machines, over 80% of the components are from world renowned brands like Bitzer, Danfoss, Siemens, etc.
Photos of 5 Ton Small Capacity Tube Ice Machine
Focusun Tube Ice Plants has module design for simple maintenance on site and frequent movement. All parts connecting with water are made of stainless steel SUS304, PE and aluminum alloy plate to ensure the quality and sanitary tube ice. Each part is processed with strict technical tests before using, so our machine can stand decades of trouble-free operation.
5 Ton Small Capacity Plate Ice Machine
Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process takes only 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 5T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
6 Ton Small Capacity Plate Ice Machine
Focusun small capacity Plate Ice Plant ranges from 1 tons/day to 6 tons/day with all equipments assembled in a steel frame. Because of its compact and space-saving design, it's suitable for container shipment, easy to move and install. What's more, it's also easy to operate and maintain. Just connect to a power and water source and the Ice Plant is ready to be used.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Powersupply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 6000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Operating power of cutter | Kw | 1.1 |
| Operating power of cold water pump | Kw | 0.75 | |
| Warm water pump | Kw | 0.55 | |
| Total running power | Kw | 30.6 | |
| Installment power | Kw | 36 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 44.4 | |
| Operating power | Kw | 25.8 | |
| Compressor COP/EER | Kw/kw | 1.73 | |
| Horse power | Hp | 40 | |
| Condenser | Fan power | Kw | 2.4 |
| Cooling way | Air cooling | ||
| Installment | Externaly installed | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 2200×2000×2200 |
| Size of condenser | (L×W×H)(mm) | 2550×1200×1450 | |
| Size of water feeding pipe | 1/2" | ||
| Operating weight | Operating weight of plate ice maker | Kg | 1860 |
| Operating weight of condenser | Kg | 256 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 6 Ton Small Capacity Plate Ice Machine
Standard power supply for small capacity Plate Ice Plant is 380V/3P/50Hz and standard cooling mode is air cooling. But Focusun advanced technology allows you to customize the Plate Ice Maker to suit your needs and preferences. To ensure the high-quality of our machines, over 80% of the components are from world renowned brands like Bitzer, Danfoss, Siemens, etc.
Photos of 6 Ton Small Capacity Tube Ice Machine
Focusun Tube Ice Plants has module design for simple maintenance on site and frequent movement. All parts connecting with water are made of stainless steel SUS304, PE and aluminum alloy plate to ensure the quality and sanitary tube ice. Each part is processed with strict technical tests before using, so our machine can stand decades of trouble-free operation.
6 Ton Small Capacity Plate Ice Machine
Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process takes only 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 6T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- FIP-80W
- FIP-100W
- FIP-120W
- FIP-160W
- FIP-200W
- FIP-240W
- FIP-320W
- FIP-400W
- FIP-480W
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
8 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: machine unit module, evaporator module and cooling system module. The daily capacity ranges from 8 tons/day to 48 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 8000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 1.1 |
| Warm water pump | Kw | 0.75 | |
| Ice cutter | Kw | 0.75 | |
| Cooling tower fan | Kw | 0.75 | |
| Cooling water pump | Kw | 2.2 | |
| Total running power | Kw | 29.25 | |
| Installment power | Kw | 35 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 48.8 | |
| Operating power | Kw | 23.7 | |
| Compressor COP/EER | Kw/kw | 2.06 | |
| Horse power | Hp | 40×1set | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | (L×W×H)(mm) | 1200×800×1650 |
| Number of evaporator | 1PC | ||
| Size of evaporator | (L×W×H)(mm) | 2200×1400×2200 | |
| Size of ice outlet | (L×W)(mm) | 1500×300 | |
| Size of cooling tower | (O.D.×H)(mm) | Ф1500×2205 | |
| Size of water feeding pipe of cooling tower | 1/2" | ||
| Size of cooling water pipes | 2-1/2" | ||
| Size of water feeding pipe | 3/4" | ||
| Operating weight | Unit | Kg | 687 |
| Evaporator | Kg | 1356 | |
| Cooling tower | Kg | 540 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 8 Tons Large Capacity Plate Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 8 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker evaporators are made of stainless steel SUS304 and aluminum alloy plate which conforms to sanitary security requirements. The machine is widely applied in concrete mixing plants, chemical plants, the food and fishing industry. Nowadays the machine is widely applied to dynamic ice storage systems to save energy cost with ice production at night.
8 Tons Large Capacity Plate Ice Machine
Plate Ice is a thick and transparent ice which has good air permeability and a long shelf life. Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process only takes 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 8T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
10 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: machine unit module, evaporator module and cooling system module. The daily capacity ranges from 8 tons/day to 48 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 10000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 1.1 |
| Warm water pump | Kw | 0.75 | |
| Ice cutter | Kw | 1.1 | |
| Cooling tower fan | Kw | 1.1 | |
| Cooling water pump | Kw | 2.2 | |
| Total running power | Kw | 39.07 | |
| Installment power | Kw | 48 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 71 | |
| Operating power | Kw | 32.82 | |
| Compressor COP/EER | Kw/kw | 2.16 | |
| Horse power | Hp | 25×2sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | (L×W×H)(mm) | 1600×1200×1800 |
| Number of evaporator | 1PC | ||
| Size of evaporator | (L×W×H)(mm) | 2200×1700×2200 | |
| Size of ice outlet | (L×W)(mm) | 1500×300 | |
| Size of cooling tower | (O.D.×H)(mm) | Ф2000×2410 | |
| Size of water feeding pipe of cooling tower | 3/4" | ||
| Size of cooling water pipes | 2-1/2" | ||
| Size of water feeding pipe | 3/4" | ||
| Operating weight | Unit | Kg | 1150 |
| Evaporator | Kg | 1460 | |
| Cooling tower | Kg | 670 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 10 Tons Large Capacity Plate Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 10 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker evaporators are made of stainless steel SUS304 and aluminum alloy plate which conforms to sanitary security requirements. The machine is widely applied in concrete mixing plants, chemical plants, the food and fishing industry. Nowadays the machine is widely applied to dynamic ice storage systems to save energy cost with ice production at night.
10 Tons Large Capacity Plate Ice Machine
Plate Ice is a thick and transparent ice which has good air permeability and a long shelf life. Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process only takes 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 10T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
12 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: machine unit module, evaporator module and cooling system module. The daily capacity ranges from 8 tons/day to 48 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 12000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 1.1 |
| Warm water pump | Kw | 0.75 | |
| Ice cutter | Kw | 1.1 | |
| Cooling tower fan | Kw | 1.1 | |
| Cooling water pump | Kw | 2.2 | |
| Total running power | Kw | 44.47 | |
| Installment power | Kw | 55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 81.8 | |
| Operating power | Kw | 38.22 | |
| Compressor COP/EER | Kw/kw | 2.14 | |
| Horse power | Hp | 30×2sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | (L×W×H)(mm) | 1600×1250×1800 |
| Number of evaporator | 1PC | ||
| Size of evaporator | (L×W×H)(mm) | 2200×1900×2200 | |
| Size of ice outlet | (L×W)(mm) | 1500×300 | |
| Size of cooling tower | (O.D.×H)(mm) | Ф2000×2410 | |
| Size of water feeding pipe of cooling tower | 3/4" | ||
| Size of cooling water pipes | 2-1/2" | ||
| Size of water feeding pipe | 3/4" | ||
| Operating weight | Unit | Kg | 1250 |
| Evaporator | Kg | 1560 | |
| Cooling tower | Kg | 670 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 12 Tons Large Capacity Plate Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 12 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker evaporators are made of stainless steel SUS304 and aluminum alloy plate which conforms to sanitary security requirements. The machine is widely applied in concrete mixing plants, chemical plants, the food and fishing industry. Nowadays the machine is widely applied to dynamic ice storage systems to save energy cost with ice production at night.
12 Tons Large Capacity Plate Ice Machine
Plate Ice is a thick and transparent ice which has good air permeability and a long shelf life. Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process only takes 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 12T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
16 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: machine unit module, evaporator module and cooling system module. The daily capacity ranges from 8 tons/day to 48 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 16000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 1.5 |
| Warm water pump | Kw | 0.75 | |
| Ice cutter | Kw | 1.5 | |
| Cooling tower fan | Kw | 1.5 | |
| Cooling water pump | Kw | 3.7 | |
| Total running power | Kw | 56.35 | |
| Installment power | Kw | 70 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 97.6 | |
| Operating power | Kw | 47.4 | |
| Compressor COP/EER | Kw/kw | 2.06 | |
| Horse power | Hp | 40×2sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | (L×W×H)(mm) | 1750×1250×1800 |
| Number of evaporator | 1PC | ||
| Size of evaporator | (L×W×H)(mm) | 2200×2100×2200 | |
| Size of ice outlet | (L×W)(mm) | 1500×300 | |
| Size of cooling tower | (O.D.×H)(mm) | Ф2175×2565 | |
| Size of water feeding pipe of cooling tower | 3/4" | ||
| Size of cooling water pipes | 3" | ||
| Size of water feeding pipe | 3/4" | ||
| Operating weight | Unit | Kg | 1450 |
| Evaporator | Kg | 1760 | |
| Cooling tower | Kg | 1120 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 16 Tons Large Capacity Plate Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 16 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker evaporators are made of stainless steel SUS304 and aluminum alloy plate which conforms to sanitary security requirements. The machine is widely applied in concrete mixing plants, chemical plants, the food and fishing industry. Nowadays the machine is widely applied to dynamic ice storage systems to save energy cost with ice production at night.
16 Tons Large Capacity Plate Ice Machine
Plate Ice is a thick and transparent ice which has good air permeability and a long shelf life. Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process only takes 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 16T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
20 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: machine unit module, evaporator module and cooling system module. The daily capacity ranges from 8 tons/day to 48 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 20000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 2.25 |
| Warm water pump | Kw | 0.75 | |
| Ice cutter | Kw | 2.2 | |
| Cooling tower fan | Kw | 2.2 | |
| Cooling water pump | Kw | 5.5 | |
| Total running power | Kw | 84 | |
| Installment power | Kw | 100 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 146.4 | |
| Operating power | Kw | 71.1 | |
| Compressor COP/EER | Kw/kw | 2.06 | |
| Horse power | Hp | 40×3sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | (L×W×H)(mm) | 2450×1600×1800 |
| Number of evaporator | 1PC | ||
| Size of evaporator | (L×W×H)(mm) | 3800×2200×2450 | |
| Size of ice outlet | (L×W)(mm) | 1500×300 | |
| Size of cooling tower | (O.D.×H)(mm) | Ф2650×2565 | |
| Size of water feeding pipe of cooling tower | 1" | ||
| Size of cooling water pipes | 4" | ||
| Size of water feeding pipe | 1" | ||
| Operating weight | Unit | Kg | 2150 |
| Evaporator | Kg | 2680 | |
| Cooling tower | Kg | 1300 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 20 Tons Large Capacity Plate Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 20 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker evaporators are made of stainless steel SUS304 and aluminum alloy plate which conforms to sanitary security requirements. The machine is widely applied in concrete mixing plants, chemical plants, the food and fishing industry. Nowadays the machine is widely applied to dynamic ice storage systems to save energy cost with ice production at night.
20 Tons Large Capacity Plate Ice Machine
Plate Ice is a thick and transparent ice which has good air permeability and a long shelf life. Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process only takes 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 20T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
24 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: machine unit module, evaporator module and cooling system module. The daily capacity ranges from 8 tons/day to 48 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 24000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 3 |
| Warm water pump | Kw | 1.1 | |
| Ice cutter | Kw | 2.5 | |
| Cooling tower fan | Kw | 2.5 | |
| Cooling water pump | Kw | 5.5 | |
| Total running power | Kw | 100.1 | |
| Installment power | Kw | 125 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 177.2 | |
| Operating power | Kw | 85.8 | |
| Compressor COP/EER | Kw/kw | 2.07 | |
| Horse power | Hp | 70×2sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | (L×W×H)(mm) | 2700×2200×2200 |
| Number of evaporator | 1PC | ||
| Size of evaporator | (L×W×H)(mm) | 4500×2200×2450 | |
| Size of ice outlet | (L×W)(mm) | 1500×300 | |
| Size of cooling tower | (O.D.×H)(mm) | Ф2650×2565 | |
| Size of water feeding pipe of cooling tower | 1" | ||
| Size of cooling water pipes | 4" | ||
| Size of water feeding pipe | 1" | ||
| Operating weight | Unit | Kg | 2450 |
| Evaporator | Kg | 3250 | |
| Cooling tower | Kg | 1300 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 24 Tons Large Capacity Plate Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 24 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker evaporators are made of stainless steel SUS304 and aluminum alloy plate which conforms to sanitary security requirements. The machine is widely applied in concrete mixing plants, chemical plants, the food and fishing industry. Nowadays the machine is widely applied to dynamic ice storage systems to save energy cost with ice production at night.
24 Tons Large Capacity Plate Ice Machine
Plate Ice is a thick and transparent ice which has good air permeability and a long shelf life. Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process only takes 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 24T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
32 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: machine unit module, evaporator module and cooling system module. The daily capacity ranges from 8 tons/day to 48 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R2 2 or R404A | ||
| Capacity | Kg/day | 32000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 4.4 |
| Warm water pump | Kw | 1.5 | |
| Ice cutter | Kw | 3 | |
| Cooling tower fan | Kw | 2.2 | |
| Cooling water pump | Kw | 7.5 | |
| Total running power | Kw | 124 | |
| Installment power | Kw | 150 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 238.4 | |
| Operating power | Kw | 105.4 | |
| Compressor COP/EER | Kw/kw | 2.26 | |
| Horse power | Hp | 75×2sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | (L×W×H)(mm) | 2700×2200×2200 |
| Number of evaporator | 1PC | ||
| Size of evaporator | (L×W×H)(mm) | 3200×2200×2450 | |
| Size of ice outlet | (L×W)(mm) | 1500×300×2PC | |
| Size of cooling tower | (O.D.×H)(mm) | Ф3050×2780 | |
| Size of water feeding pipe of cooling tower | 1" | ||
| Size of cooling water pipes | 5" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 2550 |
| Evaporator | Kg | 1680 | |
| Cooling tower | Kg | 1630 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 32 Tons Large Capacity Plate Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 32 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker evaporators are made of stainless steel SUS304 and aluminum alloy plate which conforms to sanitary security requirements. The machine is widely applied in concrete mixing plants, chemical plants, the food and fishing industry. Nowadays the machine is widely applied to dynamic ice storage systems to save energy cost with ice production at night.
32 Tons Large Capacity Plate Ice Machine
Plate Ice is a thick and transparent ice which has good air permeability and a long shelf life. Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process only takes 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 32T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
40 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: machine unit module, evaporator module and cooling system module. The daily capacity ranges from 8 tons/day to 48 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 40000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 6 |
| Warm water pump | Kw | 2.2 | |
| Ice cutter | Kw | 3 | |
| Cooling tower fan | Kw | 3.7 | |
| Cooling water pump | Kw | 7.5 | |
| Total running power | Kw | 154.7 | |
| Installment power | Kw | 200 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 296.1 | |
| Operating power | Kw | 132.3 | |
| Compressor COP/EER | Kw/kw | 2.24 | |
| Horse power | Hp | 60×3sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | (L×W×H)(mm) | 3200×2200×2200 |
| Number of evaporator | 2PC | ||
| Size of evaporator | (L×W×H)(mm) | 3800×2200×2450 | |
| Size of ice outlet | (L×W)(mm) | 1500×300×2PC | |
| Size of cooling tower | (O.D.×H)(mm) | Ф3300×2785 | |
| Size of water feeding pipe of cooling tower | 1-1/4" | ||
| Size of cooling water pipes | 5" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 2850 |
| Evaporator | Kg | 2565 | |
| Cooling tower | Kg | 2730 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 40 Tons Large Capacity Plate Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 40 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker evaporators are made of stainless steel SUS304 and aluminum alloy plate which conforms to sanitary security requirements. The machine is widely applied in concrete mixing plants, chemical plants, the food and fishing industry. Nowadays the machine is widely applied to dynamic ice storage systems to save energy cost with ice production at night.
40 Tons Large Capacity Plate Ice Machine
Plate Ice is a thick and transparent ice which has good air permeability and a long shelf life. Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process only takes 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 40T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
48 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker features a modular design which makes it easy to install, ship and operate. The unit consists of 3 parts: machine unit module, evaporator module and cooling system module. The daily capacity ranges from 8 tons/day to 48 tons/day. With our advanced technology and professional technical team, we will certainly offer you a series of comprehensive Ice-Making solutions.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 48000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 8.8 |
| Warm water pump | Kw | 2.5 | |
| Ice cutter | Kw | 4.5 | |
| Cooling tower fan | Kw | 3.7 | |
| Cooling water pump | Kw | 11.5 | |
| Total running power | Kw | 189.1 | |
| Installment power | Kw | 230 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 357.6 | |
| Operating power | Kw | 158.1 | |
| Compressor COP/EER | Kw/kw | 2.26 | |
| Horse power | Hp | 75×3sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | (L×W×H)(mm) | 3200×2200×2200 |
| Number of evaporator | 3PC | ||
| Size of evaporator | (L×W×H)(mm) | 3200×2200×2450 | |
| Size of ice outlet | (L×W)(mm) | 1500×300×3PC | |
| Size of cooling tower | (O.D.×H)(mm) | Ф3770×3490 | |
| Size of water feeding pipe of cooling tower | 1-1/4" | ||
| Size of cooling water pipes | 5" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 3210 |
| Evaporator | Kg | 1680 | |
| Cooling tower | Kg | 3640 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 48 Tons Large Capacity Plate Ice Machine
At Focusun, we always give great attention to the quality of ice machines. Over 80% of the machine components come from world renowned suppliers. According to clients' requirements, Focusun provides tailored and scientific refrigeration technical suggestions and solutions. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedbacks.
Photos of 48 Tons Large Capacity Plate Ice Machine
Focusun large capacity Plate Ice Maker evaporators are made of stainless steel SUS304 and aluminum alloy plate which conforms to sanitary security requirements. The machine is widely applied in concrete mixing plants, chemical plants, the food and fishing industry. Nowadays the machine is widely applied to dynamic ice storage systems to save energy cost with ice production at night.
48 Tons Large Capacity Plate Ice Machine
Plate Ice is a thick and transparent ice which has good air permeability and a long shelf life. Plate Ice is formed on the surface of the evaporator by exchanging heat with the refrigerant. After a period of time, the water cycle and refrigeration stops while the water and overheating refrigerant gas begin the heat exchange with the Plate Ice. By using water and heat fluorine at the same time, the whole ice doffing process only takes 120 seconds. In addition, the dimension of the Plate Ice can be adjusted according to the ice crushing gadget.
Clients who purchased our 48T Plate Ice Plant
Testimonials
What our Clients say about this ice Plant around the Globe
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my plate ice machine from Focusun. The product quality has exceeded my expectations.
Amin Fish Farms & Ind. Ltd.
This machine was cost-efficient and it remains reliable up till today. If you are thinking of establishing or expanding your ice manufacturing business, we will recommend Focusun products.
Freshwater Fishing Associates (Bangladesh)
Thanks to Focusun, we were able to meet our ice production demand and business is good. You cannot go wrong with Focusun plate ice plants.
Grand Bay (Malaysia)
Great product, energy efficient and friendly customer service. I will surely buy this product again in the future.
Golden Fresh Sdn. Bhd.
I am happy with my choice to purchase my ice maker from Focusun. Thank you for great product and service.
Ang Kee Aquaculture Sdn Bhd
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
Contacts & Support
Focusun Refrigeration CorporationRoom 603, Baohong Center
No. 7755 Zhongchun Rd
Shanghai CHINA
ZipCode: 201100
Tel: +86-21-5108 9946
Fax: +86-21-5227 2259
Email: enquiry@focusun.com
Sales: sales@focusun.com
Marketing: marketing@focusun.com
Press: press@focusun.com
Newsletter: newsletter@focusun.com
